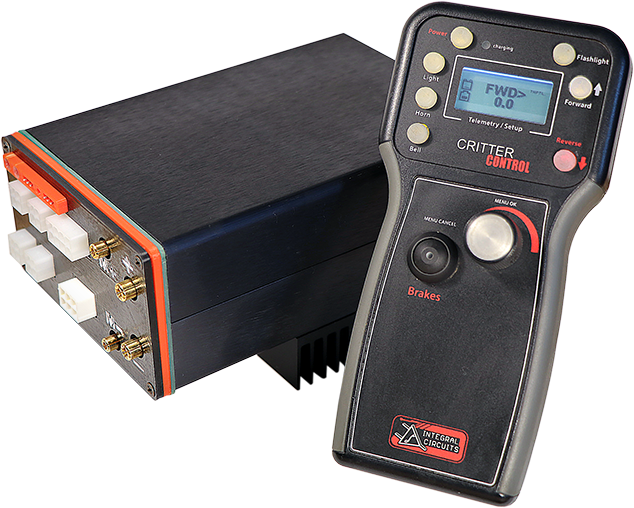

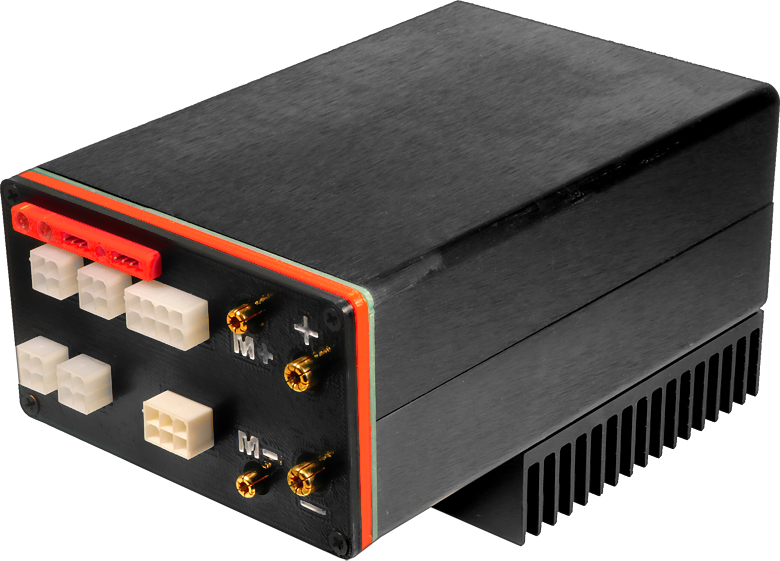

Critter Control CC50A
50A Continuous fully integrated locomotive control system with sound and light control.
  • Full Bridge motor control with 50A continuous operation
  • Lighting controller with Front and Rear channel
  • Basic set of Telemetry
  • Bi Directional Link Radio control with up to 1 mile (line of sight) range.
  • Many deadman features for security
  • Direct to locomotive teathering of remote for recharging
  •
    Downloads:
    Manual
    Installation Guide
    Remote Control
    Direct To Locomotive Teathering:
    • Enables charging of the handset from the locomotive batteries
    Deadman Features:
    • User configurable modes and options:
    • Button hit timeout with adjustable delay timer
    • Remote movement detection utilizing accelerometer
    • Free-fall detection utilizing accelerometer detects dropped remote control
    • Brake button hit while locomotive speed > threshhold value
    • Shutdown on power-off or loss of communication
    • Shutdown communicated to all MU locomotives
    Power Requirements and Specifications:

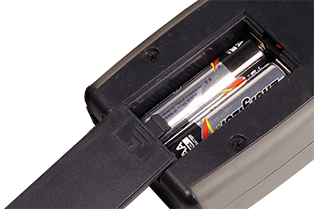

    • Up to 10 hours operation from 2 AA NiMH 2300mAH cells.
    • Integrated charger can charge from any 12V source.
    • Transmitter can charge from locomotive MU ports.
    • Charge status LED indicates mode of charge operation.



    Radio:
    • Bi-Directional link
    • High speed 2.4Ghz spread spectrum communication
    • Line of sight range up to 1 mile
    • Error detection and correction
    • Loss of signal shutdown response of <= 0.5 seconds.

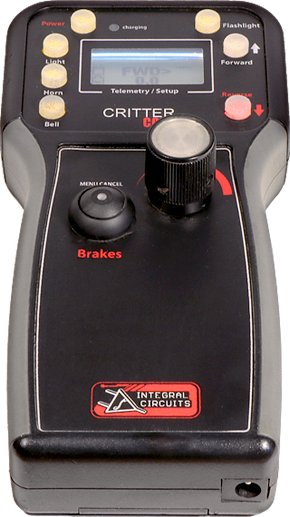

    Graphical Display:
    • 128x32 pixel Monochrome LCD.
    • Speed of locomotive actual miles per hour
    • Battery voltage shown for 2 batteries ( 12V level)
    • State of charge of locomotive batteries (average)
    • State of charge of handheld battery.
    • Set brake pressure for air brakes when applied

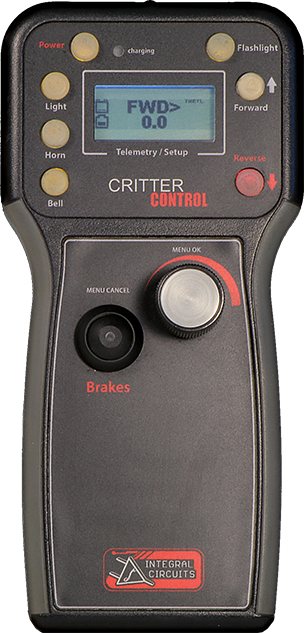

    Button Controlled Functions:
    • Speed and Direction.
    • Application and associated pressure for locomotive brakes
    • Horn
    • Bell
    • Directional controlled front and rear headlights. On/Off/Dimming
    • Inbuild flashlight for night running


    Controller Specs
    Telemetry:
    • Up to 2 batteries 12V * 2 (24V total)
    • Speed
    • Set Brake pressure
    Brake Controls:
    • 1 connector for train and locomotive brakes with valve control (up to 1A) and pressure sensur return inputs.
    • Air brake control system requires valve/motor drive/sensor box
    • Works with both positive air pressure and vacuum brake systems.
    • Controls air pressure to brakes in PSI direct from hand held remote command



    Misc Specifications:
    • Power from 24V Lead acid batteries
    • 80A maximum current input combined motor+accessories
    • Under Voltage protecion threshold at 20V
    • Motor PWM frequency of 8khz
    • Headlighth lighting via CC-CV controller/regulator. Adjustable current and voltage. 3A max. Each output. internally limited
    • Internal accessory bus protected via thermal breakers
    • Speed detection via Hall effect sensor or reed switch input. Requires sensor installation and magnets on one wheel


    Motor Control:
    • Up to 50A continuous operation
    • Integrated mains contactor with pre charge circuit eliminates chassis wiring.
    • Integrated passive cooled heat sink.
    • Regenerative braking/four quadrant control
    • Full bridge circuit eliminates relays in directional control.
    • Thermally Protected
    • Undervoltage Protection
    • Overvoltage Protection (36V max)
    • Reverse Protection
    • Motor to (+) and Motor to ground short detection.
    • Current hard limit fixed at 75 Amps



    Lighting Controls:
    • Forward and Reverse headlights with directional dimming
    • Adjustable dim setting for reverse channel (4 levels / off)

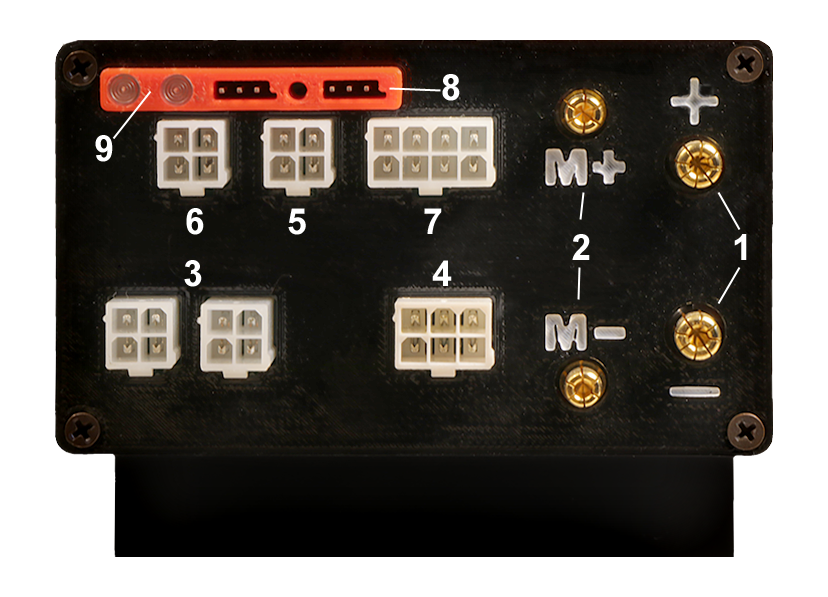

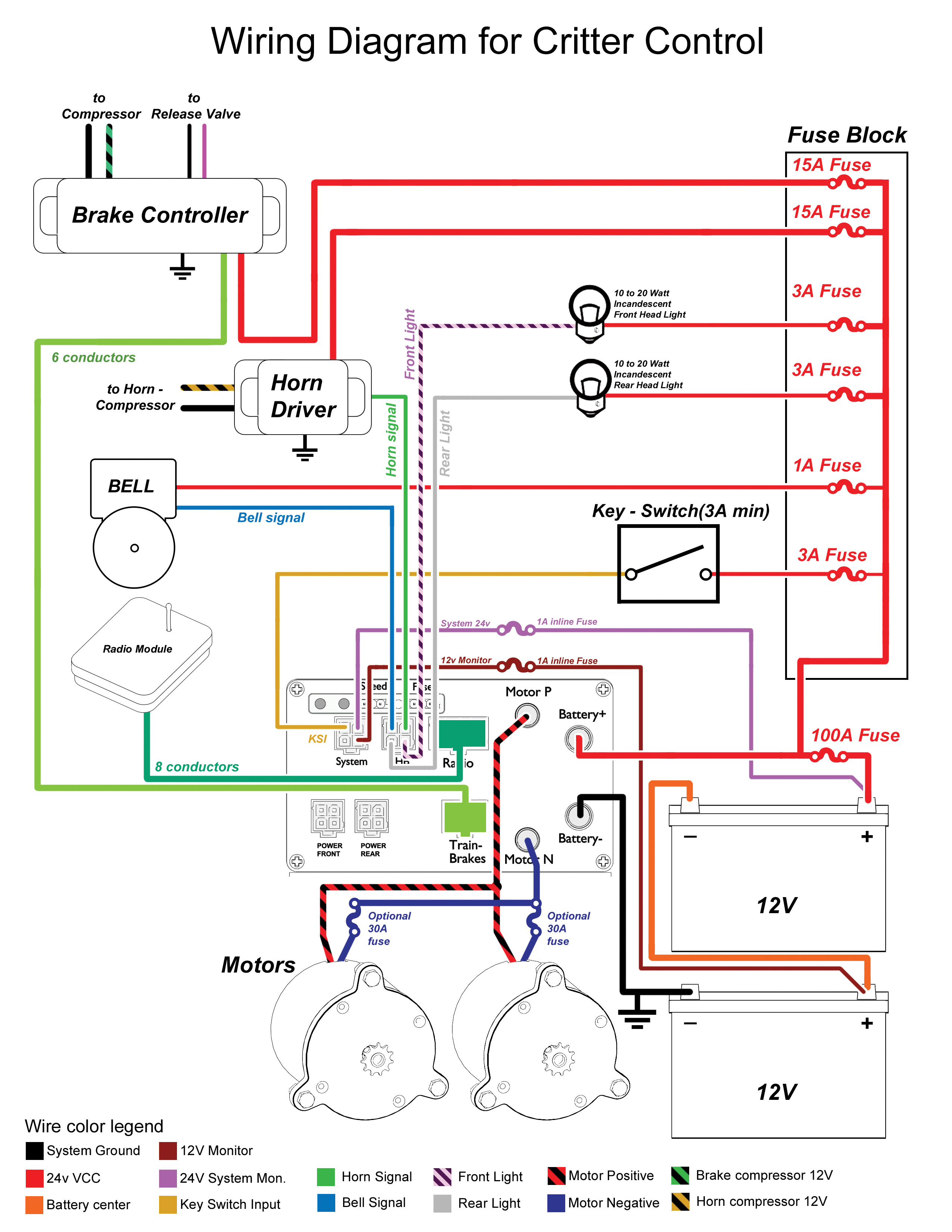

    Connection Overview
    1. Main power connection
    2. Motor connections
    3. Multi unit connector
    4. Locomotive Brakes connector
    5. Lights horn and bell connector
    6. Main System connector
    7. Radio transceiver connector
    8. Speed and multi sensor sensor input
    9. System LED panel

    Durability

    We use Quality parts to ensure a smooth and cool operation of our internal motor controller.

    Great care has been taken to make sure our controller is sturdy and has a lot of headroom for current draw. Ensuring a prolonged continuous operation at 50A.

    The Passive heatsink design with dual bank temperature sensing ensures a safe operation at peak performance without the need of a cooling fan. (operation with a fan can be done in cerctain circumstances)

    Integrated per cycle overcurrent protection hardware limited to 75A ensures the controller will regulate the power to the motors in any overcurrent scenario, protecting the motor controller bridge and the motors.
